8E-4198: GENERAL DUTY END BIT LH - 35mm
8E-4198: GENERAL DUTY END BIT LH - 35mm
SKU: SKU:8E4198
Regular price
$799.00 ex GST
Regular price
Sale price
$799.00 ex GST
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

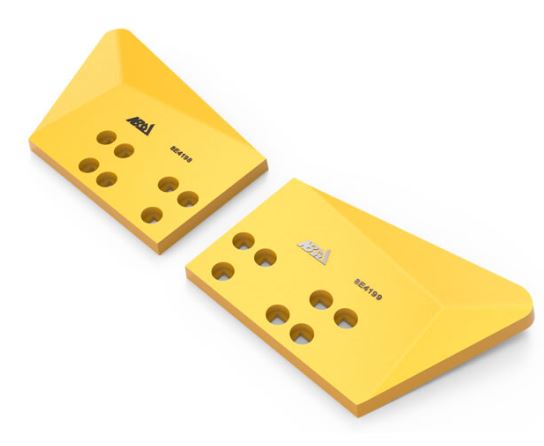

Caterpillar style bolt on end bit for a D10 Caterpillar Bulldozer. This is a hot cupped left hand end bit that is 2"thick, 19"wide and 29"in length. It takes 7 of a 1 1/4"X 4 1/2"(125X450) plow bolt and 7 of a 1 1/4"(125 HEX NUT) hex nut.
The bolt hole spacing is 7"from center to center of the first two bolt holes, and 3"from the 2nd to 3rd bolt hole and 3.13"when measured from the edge of the bucket cutting edge to the center of the first hole.
